Automatic Сurrent Source
Automatic Current Source S100 is used to supply measuring circuit with AC power during calibration of current transformers with rated primary current from 0,5 A to 5000 A
FEATURES AND BENEFITS
- Testing of CT with rated primary current up to 5000 A
- Full kit of cables needed for laboratory or field measurement
- High specified current setting speed
- Possibility of using with automated CT calibration systems
- Small size and low weight of the current source units
APPLICATIONS
The Automatic Current Source S100 can only be used as part of Current Transformer Test System MS100
MS100 with S100 is used by:
- Manufacturers of Current Transformers
- On-site testing of Current Transformers
- Calibration Laboratories
- Metrology Institutes

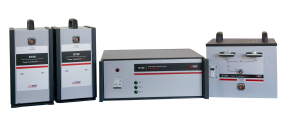

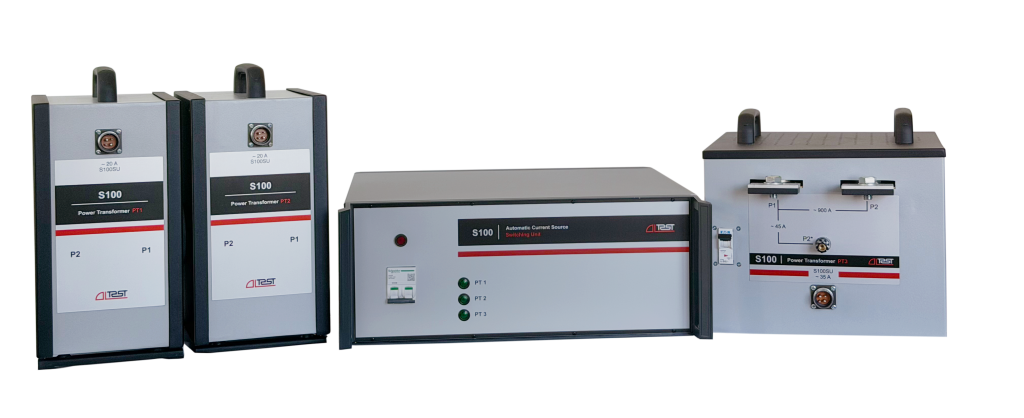

S100 may include such units:

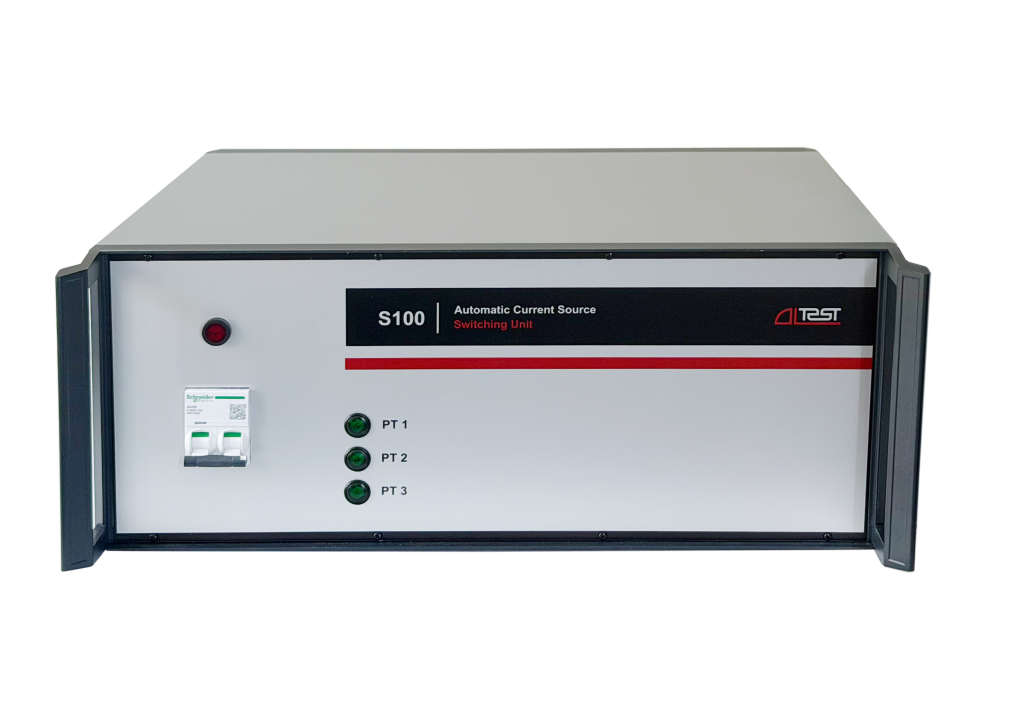

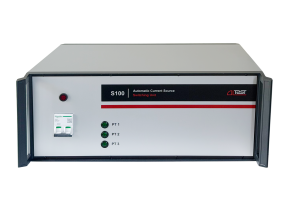

| S100SU | Switching Unit |

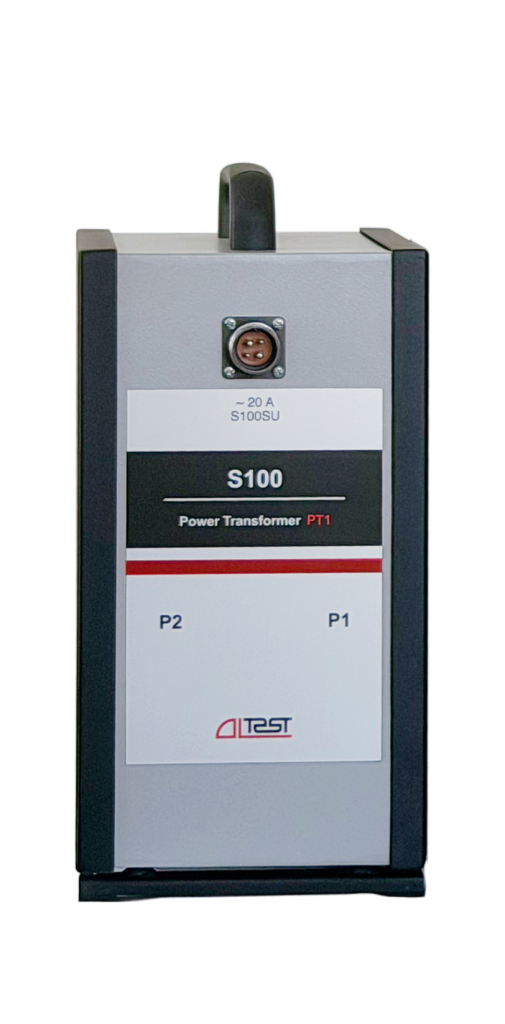

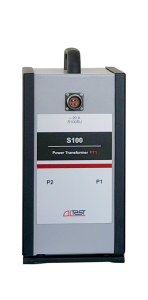

| S100PT1 | Power Transformers |
| S100PT2 | |

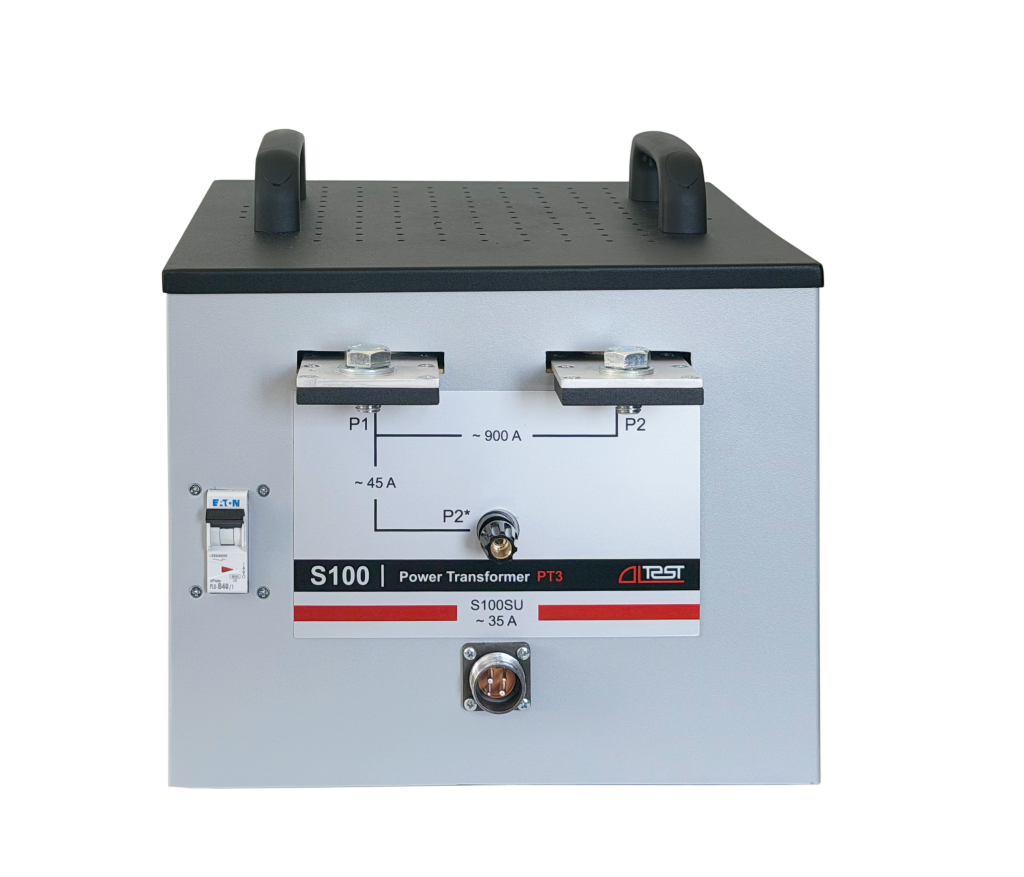

| S100PT3 |
|
AC current |
Power transformers |
| From 0,005 to 45 (max. 40 V) | The S100PT3 Power Transformer |
| From 0,05 to 900 (max. 5 V) | The S100PT3 Power Transformer |
| From 0,05 to 3000 (max. 1 V) | The S100PT1 Power Transformer |
| From 0,1 to 6000 (max. 2 V) | The S100PT1 Power Transformer and the S100PT2 Power Transformer |
| Power mains
Rated Voltage Rated Frequency |
220/230 V 50 Hz |
| Operating temperature | 0 °C…40 °C |
| Relative humidity | up to 80 % non-condensing |
| Size: | |
| S100SU | 480 × 260 × 180 mm |
| S100PT1 | 300 × 300 × 165 mm |
| S100PT2 | 300 × 300 × 165 mm |
| S100PT3 | 352 × 210 × 188 mm |
| Weight: | |
| S100SU | 27 kg |
| S100PT1 | 17 kg |
| S100PT2 | 17 kg |
| S100PT3 | 29 kg |
| Standards
Safety EMC |
EN 61010-1:2010 EN 61326-1:2013 |
