V-I Converter

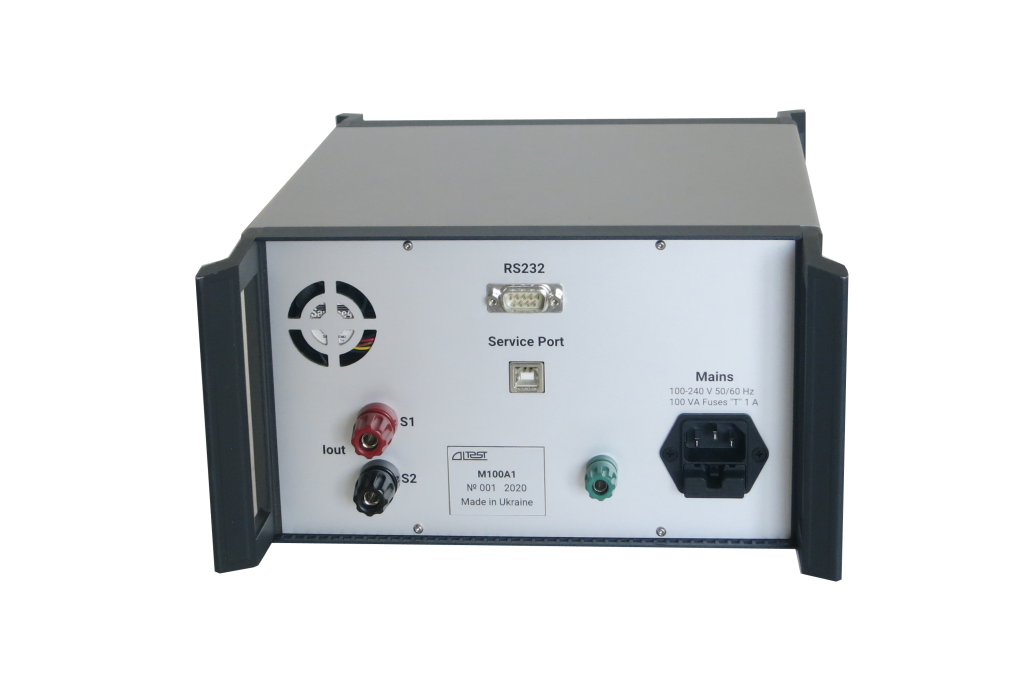

V-I Converter M100A1 is designed for calibrating and verifying Low-power Current Transformers / Current Sensors with an analog outputs. It efficiently converts the Low-power Current Transformer’s secondary voltage into current.
V-I Converter M100A1 enhances the capabilities of Comparator M100
FEATURES AND BENEFITS
- V-I Сonverter M100A1 is designed for use with Сomparator M100
- Specifications conform to the standards/recommendations of IEC 61869-10 and IEC 60044-8
- Supports a continuous range of rated secondary voltages for tested Low-power Current Transformers (LPCTs) / Current Sensors
- Test and calibrate LPCTs / Current Sensors with accuracy classes up to 0,1
- Optimized, user-friendly interface designed to easy use, minimize setup time and human error
- Storage of individual voltage settings, which can be corrected as required
- Possibility of using with automated current transformer calibration systems
- Small, lightweight, and easy-to-transport design
APPLICATIONS
V-I Сonverter M100A1 is used by:
- Manufacturer of LPCT
- Metrology institutes
- Calibration laboratories
- On-site testing of LPCT
Specification | Value |
||
|---|---|---|---|
| Rated output current | 1 A |
||
| Output current range | 0,01…2 A (1…200%) |
||
| LPCT rated secondary voltages range ( Usr) | 0,02…4,00 V |
||
| Step of changing the LPCT rated secondary voltage | 0,1 mV (0,02 ≤ Usr < 0,1 V) |
||
| Input impedance | 2 MΩ || 50 pF |
||
| Rated frequency | 50/60 Hz |
||
| Output burden | ≤ 0,2 Ω |
||
| Relative error of the conversion coefficient εU-I at output current: 0,01 А (1 %) 0,05 А (5 %) 0,2…2 А (20…200 %) | ±0,1% |
||
| Phase displacement ΔφU-I at output current: 0,01 А (1 %) 0,05 А (5 %) 0,2…2 А (20…200 %) | ±3 min (±0,09 crad) |
||
Power mains Rated voltage Rated frequency | 100…240 V 50/60 Hz |
||
| Operating temperature | 0...40 °C | ||
| Relative humidity | up to 80 % non-condensing | ||
| Size (W × H × D) | 250 × 150 × 345 mm | ||
| Weight (Main unit) | 5 kg | ||
* The manufacturer reserves the right to change the characteristics of the device.
